Manufacture XOZ15137 Mercedes Be
Classification:
Reach:
Hex:
Heat Range:
Seat Type:
Electrode Type:
Contact：
Advantage
1.Torch Advantages

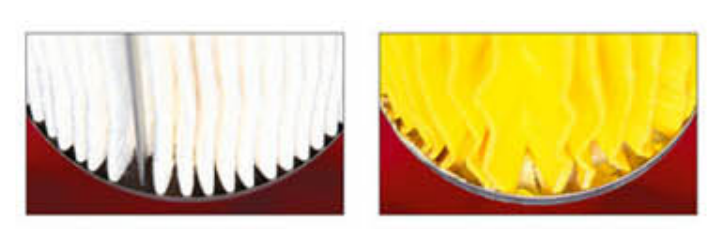

(1)Good Performance in Filtration Efficiency
High efficiency filter can catch finer impurity particles than ordinary filter. Therefore, the high-efficiency filter can slow down the wear and cylinder pulling caused by impurities entering the engine system. The following photos show the amount of dirt intercepted and filtered by the torch filter and the general filter after the formation of 5km.
(The picture on the left shows the impurity particles intercepted by our products, and the picture on the right shows the impurity particles intercepted by other inferior products)

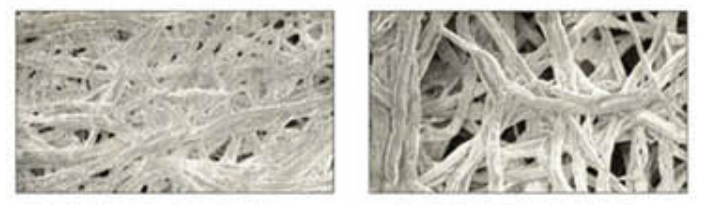

(2)Better Filter Paper Quality
All filter papers look the same to the naked eye, but the micrograph can let you see the differences between different filter papers. For inferior filter paper, they can only intercept coarse particle impurities, but will let fine particle impurities enter your engine system and damage the service life of your engine system.
(The picture on the left is the magnified picture of the high-quality filter paper microscope used for our products, and the picture on the right is the picture under the filter paper microscope of other low-quality products)

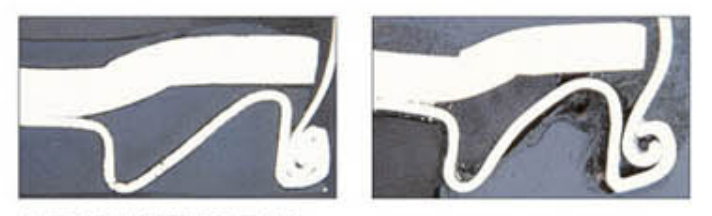

(3)More closely bonded Between Filter Paper and End Cap
The poor sealing performance of the inferior filter will cause impurities to slip into the engine system of our car from the bonding between the filter paper and the end cover, which is the result of the filter losing its filtering function and thus unable to protect the relevant parts in our engine system.
(The left picture is an enlarged view of the bonding of our filter, and the right picture is an enlarged view of the bonding of other inferior products)

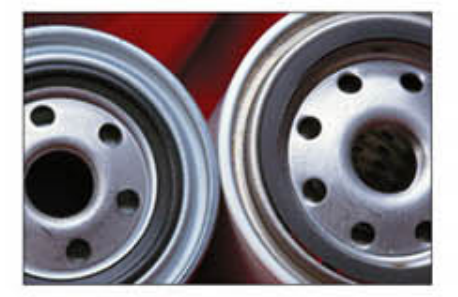

(4)Less Metal Burrs
If burrs or small metal impurities exist in the inner side of the general filter housing, they can directly enter the engine system without any obstruction, causing damage and wear to the precision components of the engine.
(The picture on the left shows our filter without any burrs; the picture on the right shows the general filter with many metal burrs)

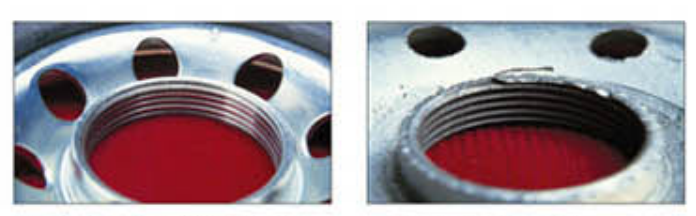

(5)Stronger Assembly Bite
If the seal ring seat of the filter is not strong enough at the bite of the housing, it will cause leakage under slightly higher pressure. The bite of our oil filter is stronger, safer and more reassuring.
(The picture on the left shows the bite design of our company, which is more solid; the picture on the right shows the bite design of general filter, which is easy to cause leakage)
(6)Better O-Ring Quality
Unlike the filter paper, the quality of the sealing ring cannot be measured with the naked eye. The sealing ring directly affects the filtering effect of the filter. The seal ring produced with wrong composition or poor program control system may lead to leakage and engine failure. The sealing ring of our company is made of appropriate materials and processed through strict control procedures, ensuring the function and quality of the filter.
(The figure shows the details of the sealing gasket of our filter)
2.Packing Informaion
60 or 72 pieces in a middle carton, and all the cartons will be packed with pallets to protect the products when shipping by sea.
Parameter
|
Type |
Oil Filter Element |
|
Part No. |
XOZ15137 |
|
Height |
116 mm |
|
Diameter of Movement |
47 mm |
|
Outer Diameter |
64 mm |
|
Inner Diameter |
31 mm |
|
OE No. |
A 000 180 26 09;000 180 23 09; K05183748AA; 000 180 31 09; A 112 184 02 25; K71775180; 5183748AA; 05183748AA; A 611 180 09 67; 112 180 00 09; A 000 180 23 09; 000 180 22 09; 05102905AB; 71775180; 112 184 06 25; 112 184 05 25; A 000 180 22 09; 112 184 02 25; 000 180 26 09; A 000 180 26 09 90; A 112 180 00 09; A 000 180 31 09; 000 180 26 09; A 112 184 05 25; 611 180 09 67; A 112 184 06 25; 05102905AA; 000 180 26 09 90; K5183748AA |
|
Cross Reference No. |
BOSCH：1 457 429 263; F 00E 160 371; F 00E 369 874 |
|
DONALDSON: P550564 |
|
|
MANN-FILTER：HU 718/5 x |
|
|
WIX：57078 |
|
|
FRAM：CH8902ECO; CH8902; CH8481 |
